The 68000 CPU-2 Board
Jumpers

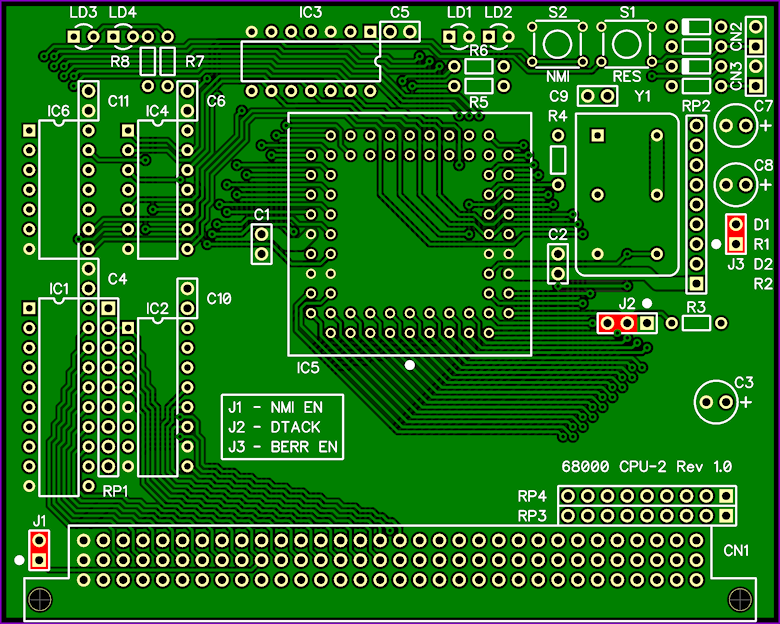

Default settings: place Jumpers as shown in RED below

J1 NMI - Non Maskable Interrupt

This Jumper enables/disables NMI interrupts from the on board pushbutton S2 and CN3 the external NMI pushbutton connector.

J1 open - disabled
J1 short - enabled

J2 DTACK

This Jumper allows DTACK to be grounded for test purposes.

J2 pins 1-2 short - DTACK grounded
J2 pins 2-3 short - normal operation

J3 BERR

This Jumper enables/disables the Bus Error feature.

J3 open - disabled
J3 short - enabled

CN2 RESET

This Connector serves two purposes:

1. Connector for normally open pushbutton switch (External RESET).
2. Allows RESET & HALT to be grounded for test purposes (use shorting Jumper).

CN2 short - RESET & HALT grounded
CN2 open - normal operation

When RESET & HALT are grounded the 68000 address and data lines are disconnected i.e. they are in a high impedance state allowing external manipulation of the address and data lines.

CN3 NMI

Connector for normally open pushbutton switch (External NMI).
