The 68000 CPU-2 Board
The purpose of this test is to see if we have a running processor but keep in mind it does not guarantee we have a FULLY functional board.

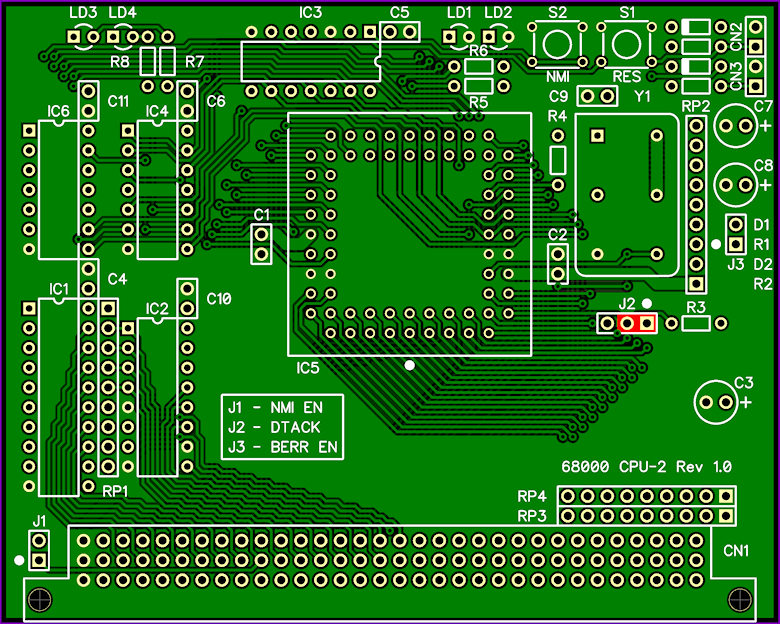

Set J2 on the 68000 CPU-2 Board to the test position as shown in RED below and remove J3
Plug the 68000 CPU-2 Board into the system backplane
Remove ALL other boards
Apply power!

LD1 and LD2 should flash briefly
LD3 and LD4 should cycle through the following LED patterns and repeat indefinitely while power is applied


Press and hold S1 (Reset Button) or place a Jumper on CN2

LD3 and LD4 should stop cycling
LD1 and LD2 should illuminate

IMPORTANT
Return J2 to the normal position and refit J3 once testing is complete

J2 pins 2-3 short - normal operation
