The
68030 SBC-3 |

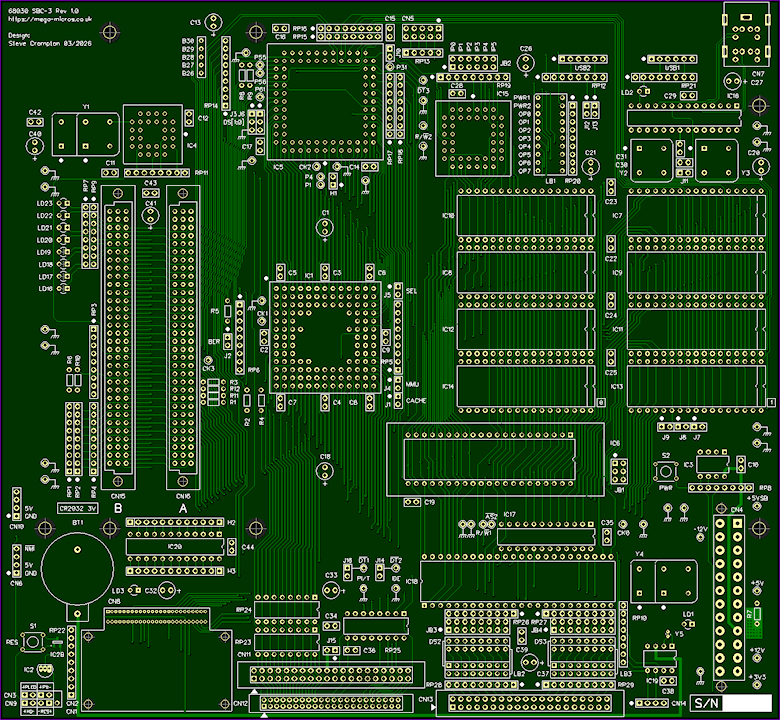

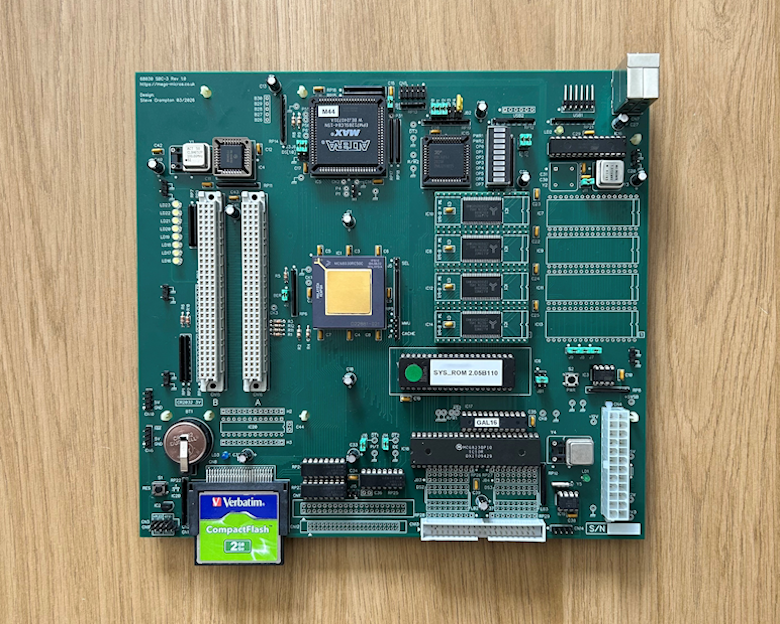

| This board is
a 3rd generation 68030 Single Board Computer (SBC). |
| |
| Board
Features: |
| |
| 40MHz 68030
CPU |
| 4MB (2MB x
16-bit) ROM |
| 4MB (1MB x
32-bit) RAM
*1 |
| 230400
Baud USB serial interface with hardware flow control |
| PS2 Keyboard &
Mouse |
| 68230 PI/T
with 16 useable GPIO lines |
| PI/T timer
interrupt support |
| Battery backed
Real Time Clock (RTC) |
| 40-Pin &
44-Pin IDE interfaces |
| Integrated
CompactFlash |
| 2x Mega-68000
compatible card slots |
| CP/M-68K &
EmuCON OS supported |
| Standalone
system (connected PC not required)
*2 |
| ATX form
factor |
| |
| *1 8MB
on-board RAM with Surface-Mount Devices (SMD) |
| *2 Requires
ACRTC Video Board |
 |
| |
| |
