The
68030 SBC

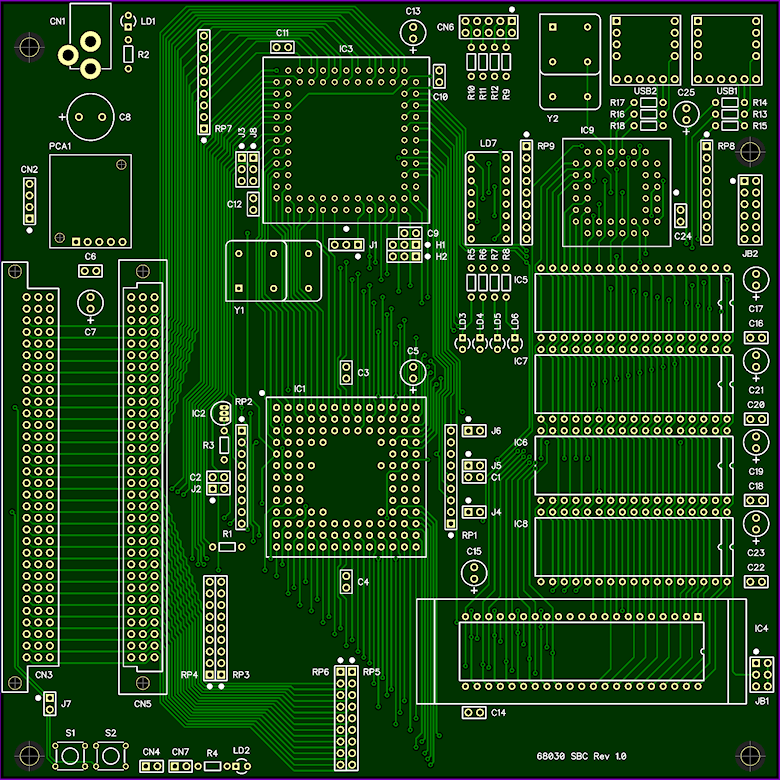

This board is a simple to construct 68030 Single Board Computer (SBC).
Board Features:
25MHz 68030 CPU
4MB (2MB x 16-bit) ROM
1MB/2MB (512K/1024K x 16-bit) RAM *
Dual 115200 Baud USB serial interfaces with hardware flow control
Mega-68000 compatible card slot
Expansion connector
ITX form factor
* 4MB/8MB on-board RAM option available
