Qty |
Description |
Ref. |
|
|
1 |

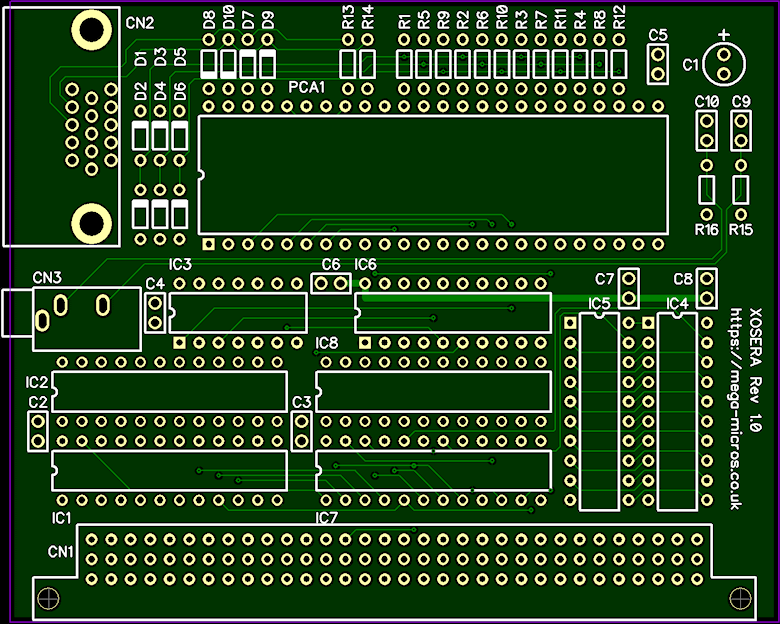

XOSERA Rev 1.0
PCB |
|
|
|
2 |
47R 1/8 Watt Resistor |
R13, R14 |
|
|
3 |
470R 1/8 Watt Resistor |
R1, R5, R9 |
|
|
3 |
1K 1/8 Watt Resistor |
R2, R6, R10 |
|
|
3 |
2K2 1/8 Watt Resistor |
R3, R7, R11 |
|
|
2 |
3K3 1/8 Watt Resistor |
R15, R16 |
|
|
3 |
4K7 1/8 Watt Resistor |
R4, R8, R12 |
|
|
7 |
100nF Ceramic
Capacitor
(2.54mm Pitch) |
C2, C3, C4, C5, C6, C7, C8 |
|
|
2 |
4n7 Ceramic Capacitor
(2.54mm Pitch) |
C9, C10 |
|
|
1 |
47uF 16V Electrolytic
Capacitor
(2.54mm Pitch) |
C1 |
|
|
10 |
1N4148 Diode |
D1,
D2, D3, D4, D5, D6, D7, D8, D9, D10 |
|
|
1 |
ATF22V10C-10PU IC + GALxx.JED |
IC1 |
|
|
1 |
ATF22V10C-10PU IC + GALxx.JED |
IC7 |
|
|
1 |
74LS74 |
IC3 |
|
|
3 |
74LVC245 |
IC4,
IC5, IC6 |
|
|
1 |
96W ABC Straight DIN 41612 Socket |
CN1 |
|
|
1 |
UPduino V3.1 |
PCA1 |
|
|
1 |
VGA Socket |
CN2 |
|
|
1 |
3.5mm Stereo Audio Jack |
CN3 |
|
|
|
|
|
|
|
|
Not Fitted: |
|
|
|
2 |
ATF22V10C-10PU IC |
IC2, IC8 |
|
|
