Mega-68000 Computer System
The inspiration for the computer system described here was the homebrew RC2014 Z80 modular computer designed by Spencer Owen.

This computer is a similar design i.e. it has a backplane + plug in boards, however it is based on a Motorola 68000 processor.

The 68000 was first introduced in 1979 and was widely used in personal computers including the Apple Macintosh, Commodore Amiga, Atari ST, and many others.

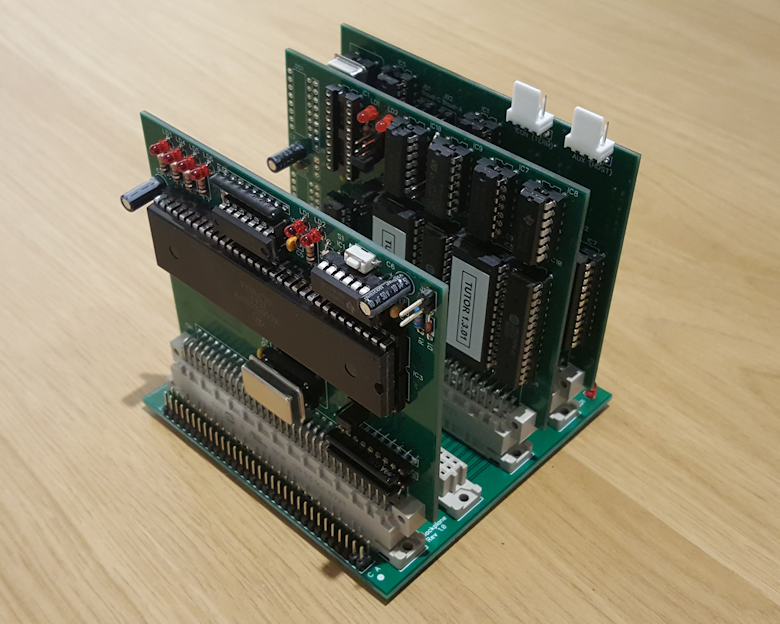

A basic Mega-68000 Computer System:

1x Backplane
1x 68000 CPU Board
1x Memory Board
1x Dual 6850 Board
