The
68030
SBC-2
Post production board modifications:
VCC & GND modification
Due to a schematic error IC14 has no VCC or GND connections.

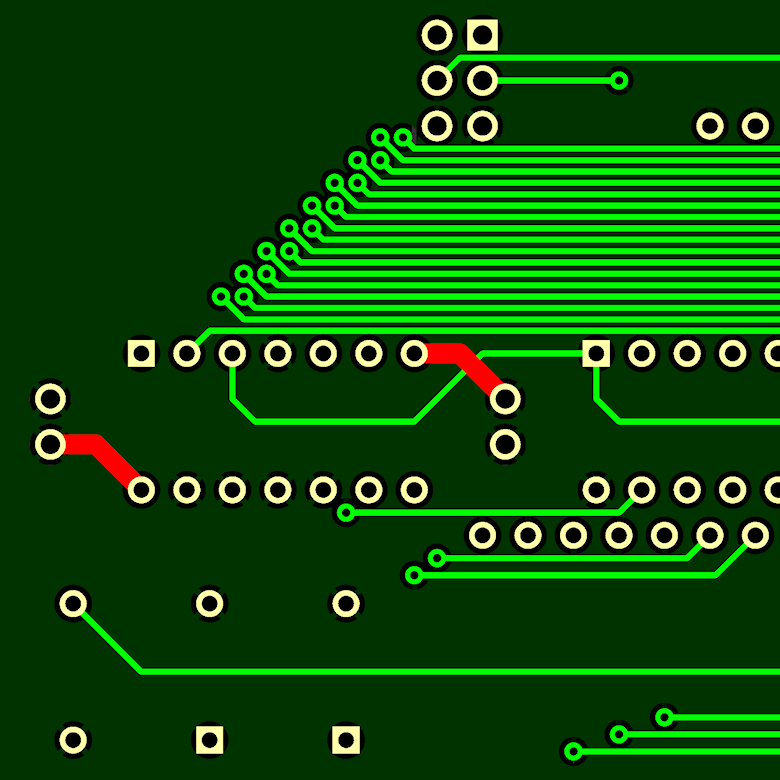

Study the image below and add the two wire links shown in red to the underside of IC14 to resolve the issue.
