Mega-68000
- Configuration 1 |
|
Specification |
| |
| 8MHz 68000
Processor |
| 2MB RAM |
| 256KB ROM |
|
Monitor |
|
BASIC |
| Dual 38.4Kbaud Serial Ports |
| Tutor ROM
V1.3.03 |
 |
|

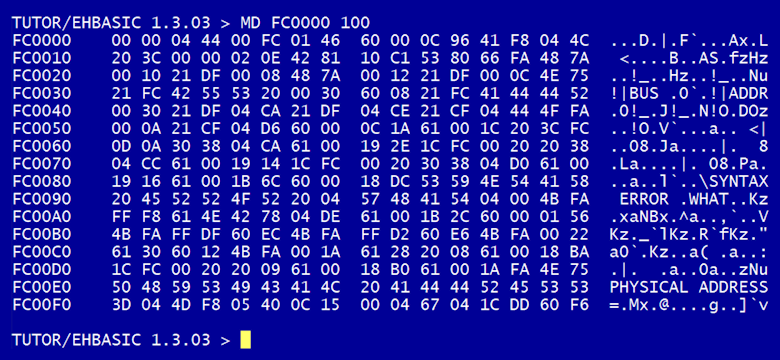

Image: |
Mega-68000
Computer System described here running the Monitor |
|
| Hardware
Configuration |
| |
| Backplane populated as follows: |
| |
|
Slot 4 |
Dual
6850 Board |
|
|
|
J1 |
2-3 short |
|
JB1 |
5-6 short |
|
JB2 |
5-6 short |
|
Y1 |
2.4576 MHz |
|
DS1 |
F1
[11110001] |
|
|
|
|
|
Slot 3 |
68000
CPU
Board * |
|
|
|
|
|
|
|
Slot 2 |
Memory-2 Board |
|
|
|
J1 |
open |
|
JB1 |
5-6 short |
|
IC2 |
GAL8 |
|
IC4 |
GAL9 |
|
IC1, IC3, IC5, IC7 |
AS6C4008 |
|
IC6 |
27C4096 |
|
|
|
|
|
Slot 1 |
Empty |
|
|
|
|
| * requires a
modification to the board |
| |
| PC Terminal
Settings |
| |
|
Port: |
COMx |
|
Speed: |
38400 |
|
Data: |
8
bit |
|
Parity: |
none |
|
Stop bits: |
1
bit |
|
Flow control: |
none |
|
| |
| |
