The
68000 CPU-2.1 Board |
| Jumpers |
| |
|
Default settings: |

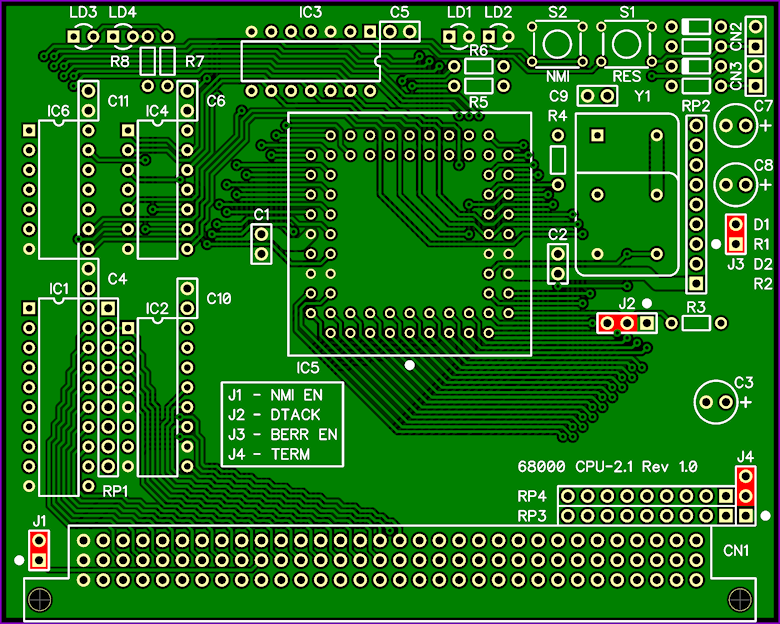

place Jumpers as
shown in RED below |
|
 |
| |
|
J1 NMI - Non
Maskable Interrupt |
| |
|
This Jumper
enables/disables NMI interrupts from the on board pushbutton
S2 and CN3 the external NMI pushbutton connector. |
| |
|
J1 open - disabled |
|
J1 short - enabled |
| |
|
J2 DTACK |
| |
|
This Jumper allows
DTACK to be grounded for test purposes. |
| |
|
J2 pins 1-2 short
- DTACK grounded |
|
J2 pins 2-3 short
- normal operation |
| |
|
J3 BERR |
| |
|
This Jumper
enables/disables the Bus Error feature. |
| |
|
J3 open - disabled |
|
J3 short - enabled |
| |
|
J4 Data Bus
Bias |
| |
|
This Jumper
controls the bias applied to the 68000 data bus. |
| |
|
J4 pins 1-2 short
- 68000 data bus biased low |
|
J4 pins 2-3 short
- 68000 data bus biased high |
| |
| CN2 RESET |
| |
|
This Connector
serves two purposes: |
| |
| 1. Connector
for normally open pushbutton switch (External RESET). |
| 2. Allows
RESET & HALT to be grounded for test purposes (use
shorting Jumper). |
| |
| CN2 short
- RESET & HALT grounded |
| CN2 open
- normal operation |
| |
|
When RESET & HALT
are grounded the 68000 address and data lines are
disconnected i.e. they are in
a high impedance state allowing external manipulation of
the address and data lines. |
| |
| CN3 NMI |
| |
| Connector for
normally open pushbutton switch (External NMI). |
| |
| |
