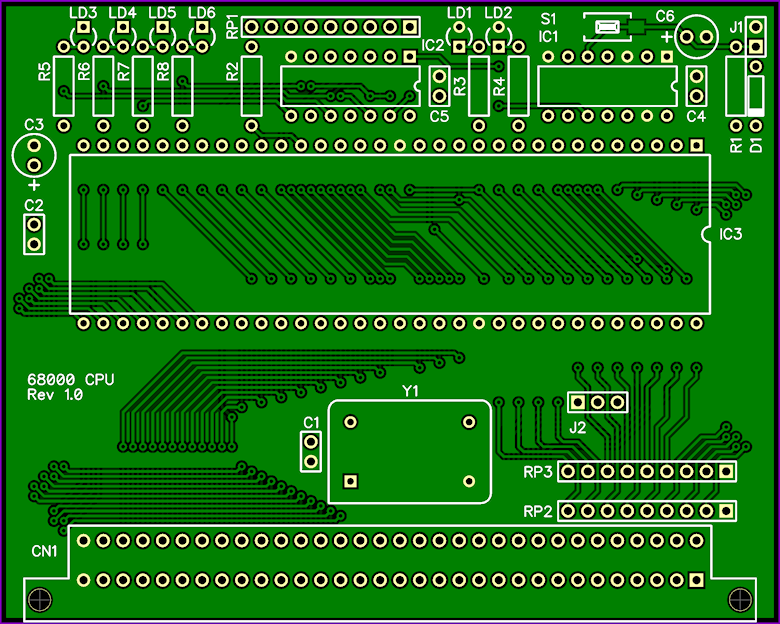

The
68000 CPU Board |
| This board is
a basic (no frills) main processor board. The board contains the
following: |
| |
| The mighty
64-pin DIP 68000 CPU |
| POR (Power On
Reset) and
manual reset circuitry |
| The CPU/System
clock oscillator module |
| |
| Board
Features: |
| |
| CPU Halt &
Reset state indicators |
| Binary display
of the upper 4 address lines (A23, A22, A21, & A20) |
| Self Test -
alone this board can be configured to 'free run'. The
68000 cycles through
its entire address range performing an op-code fetch at each
address. |
 |
| |
| |
| |
| |
| |
| |
| |
