The Dual 6850 Board

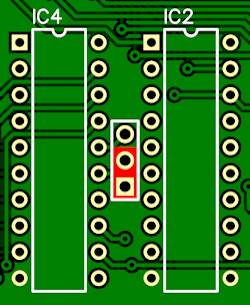

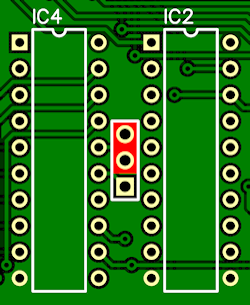

J1 A/B Select - Base Address

Placing a Jumper (as shown in RED below) sets the Base Address of the board.

$000000   $000001


JB1 Baud-C - Console Serial Port Configuration

This Jumper Block sets the Baud Rate for the Console Serial Port.

The desired option can be set with a Jumper (as shown in RED below).

9600 Baud   19200 Baud   38400 Baud
* 28800 Baud *   * 57600 Baud *   * 115200 Baud *


JB2 Baud-A - Auxiliary Serial Port Configuration

This Jumper Block sets the Baud Rate for the Auxiliary Serial Port.

The desired option can be set with a Jumper (as shown in RED below).

9600 Baud   19200 Baud   38400 Baud
* 28800 Baud *   * 57600 Baud *   * 115200 Baud *

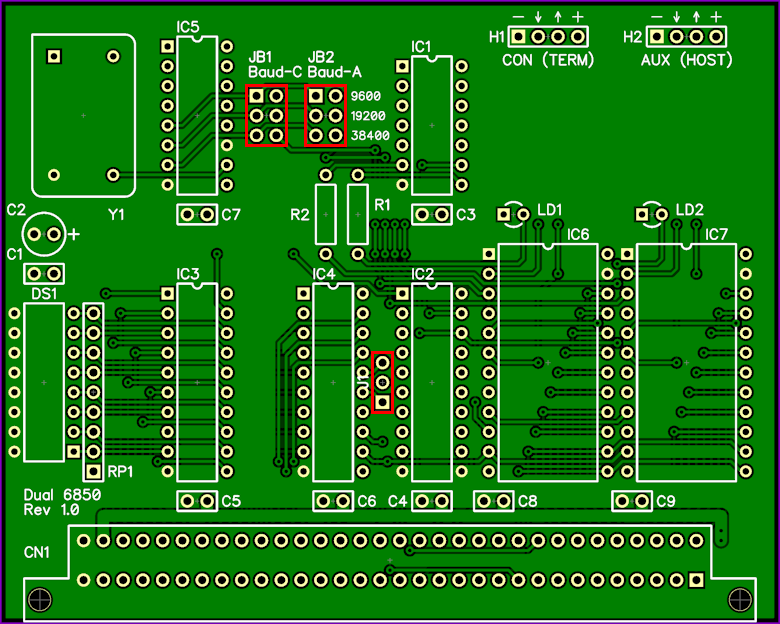

Dual 6850 Board - Jumpers highlighted in RED
