The
68000 CPU Board |
| Jumpers |
| |
|

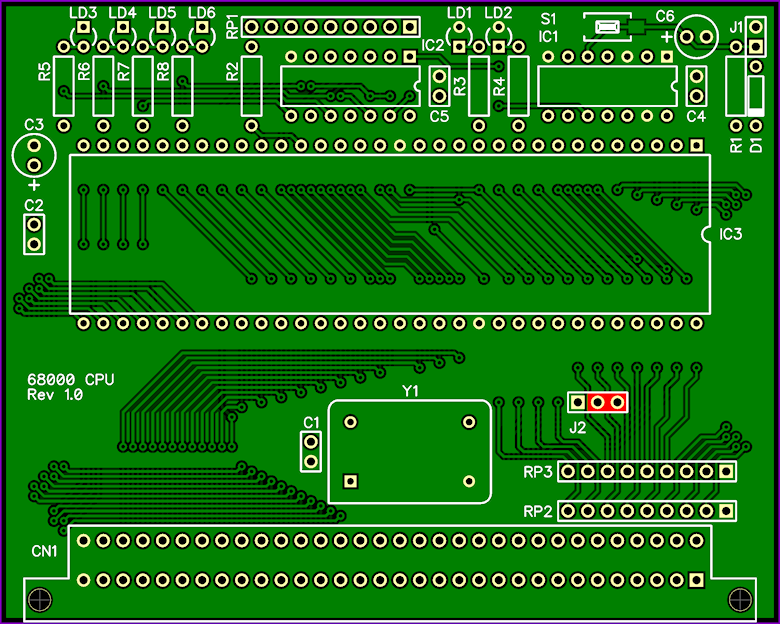

Default settings: |
place Jumpers as
shown in RED below |
|
 |
| |
|
J1 RESET |
|
|
|
This Jumper allows
RESET & HALT to be grounded for test purposes. |
|
|
|
J1 short
- RESET & HALT grounded |
|
J1 open
- normal operation |
|
|
|
When RESET & HALT
are grounded the 68000 address and data lines are
disconnected i.e. they are in
a high impedance state allowing external manipulation of
the address and data lines. |
|
|
|
J2 DTACK |
| |
|
This Jumper allows
DTACK to be grounded for test purposes. |
| |
|
J2 pins 1-2 short
- DTACK grounded |
|
J2 pins 2-3 short
- normal operation |
| |
| |
| |
| |
| |
